Conductive Silicone Keypad – Button Matrix, IP68 Rated, Carbon Pill Switches
- group name
- Custom Silicone Rubber Meter Instrument Keypad
- Min Order
- 2000 piece
- brand name
- FromRubber Silicone & Plastic OEM Manufacturer
- Nearest port for product export
- FOB shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union, Cash
- update time
- Thu, 24 Jul 2025 07:54:49 GMT
Paramtents
Design Follow 3D Drawing Or Physical Object
Process Molding
Feature Button Matrix,Conductive,IP68 Rated
MOQ 2000pcs
Application industrial, medical & automotive applications
Packging & Delivery
-
Min Order2000 piece
Briefing
conductive silicone keypad with carbon pill switches, IP68 waterproof rating. Durable matrix design for harsh environments. Custom OEM solutions available
Detailed

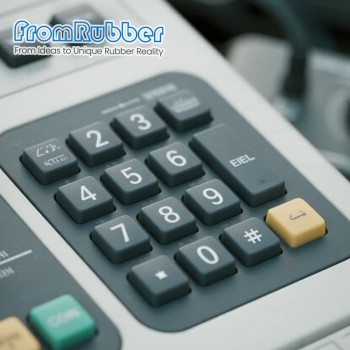

Conductive Silicone Keypad
Button Matrix | IP68 Rated | Carbon Pill Switches
Industrial-Grade Keypad Solution
High-performance conductive silicone keypad featuring carbon pill switch technology and complete IP68 environmental protection for demanding applications.
- 12-button matrix configuration (customizable)
- IP68 dust/waterproof rating
- Carbon pill switches for reliable conductivity
- -40°C to +125°C operating range
- 5+ million actuation life cycle
Technical Highlights
◉ Switch Technology
Carbon pill switches provide stable resistance (50-100Ω) with excellent wear resistance
◉ Environmental Protection
IP68 rating withstands complete dust ingress and prolonged water immersion
◉ Electrical Properties
12×12 matrix scan capability with 1mA max current per switch
Technical Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Carbon pill conductive silicone |
| IP Rating | IP68 (submersible to 1m for 30min) |
| Contact Resistance | ≤100Ω (initial), ≤200Ω (after life test) |
| Actuation Force | 180±50g (customizable) |
| Operating Temperature | -40°C to +125°C |
Recommended Applications
Industrial Controls
- Factory automation panels
- Outdoor equipment
- HMI interfaces
Medical Devices
- Sterilization-proof equipment
- Portable medical devices
- Diagnostic machines
Marine/Automotive
- Boat control systems
- Vehicle dashboards
- Heavy equipment
Customize Your IP68 Keypad
Configure button count, layout, backlighting, and connector options
Request Engineering Samples →
