Silicone Overlay Panel Adhesive Backing Silicon Membrane Keypad
- group name
- Custom Silicone Rubber Control Panel
- Min Order
- 2000 piece
- brand name
- FromRubber Silicone & Plastic OEM Manufacturer
- Nearest port for product export
- FOB shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union, Cash
- update time
- Thu, 24 Jul 2025 07:56:09 GMT
Paramtents
Design Follow 3D Drawing Or Physical Object
Process Molding
Feature Button Matrix,Conductive,IP68 Rated
MOQ 2000pcs
Application industrial, medical & automotive applications
Packging & Delivery
-
Min Order2000 piece
Briefing
Detailed

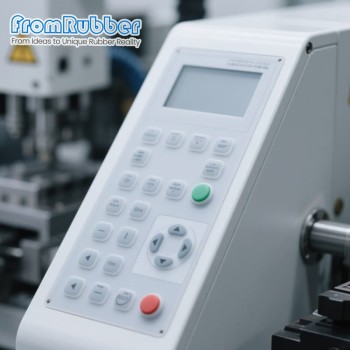

High-Performance Silicone Overlay Panel with Adhesive Backing
Premium silicone membrane keypad solutions for industrial, medical, and consumer applications
Key Features & Benefits
Durable Silicone Construction
High-grade silicone material ensures long-lasting performance even in demanding environments with excellent resistance to wear, chemicals, and extreme temperatures.
Precision Adhesive Backing
Premium pressure-sensitive adhesive provides secure bonding to various surfaces with easy installation and repositioning capability during assembly.
Tactile Feedback Design
Engineered membrane structure delivers consistent tactile response with optimal actuation force for improved user experience and reduced operator fatigue.
Technical Specifications
Material Properties
- Material: High-grade silicone rubber
- Thickness: 0.5mm - 2.0mm (customizable)
- Hardness: 40-70 Shore A
- Temperature Range: -40°C to 200°C
Adhesive Properties
- Type: Pressure-sensitive acrylic adhesive
- Thickness: 0.1mm standard
- Peel Strength: 20-40 N/25mm
- Service Temperature: -40°C to 120°C
Electrical Properties
- Dielectric Strength: 15kV/mm
- Volume Resistivity: >10^14 ohm-cm
- Surface Resistivity: >10^13 ohm
Customization Options
Ready to Order or Need More Information?
Our engineering team is ready to assist with your custom silicone overlay panel requirements.
Contact Our TeamFrequently Asked Questions
What is the typical lead time for custom silicone overlay panels?
Standard products ship within 5-7 business days. Custom designs typically require 2-3 weeks for prototyping and 3-4 weeks for production quantities.
What surface preparations are needed for the adhesive backing?
Surfaces should be clean, dry, and free from dust, oil or grease. For optimal bonding, we recommend cleaning with isopropyl alcohol (70% or higher concentration).
Can these silicone overlays be used in outdoor applications?
Yes, our silicone material is UV resistant and performs well in outdoor environments. For extended outdoor exposure, we recommend our special formulation with enhanced UV stabilizers.
