IP67 Waterproof Silicone Membrane Keypads Rubber Panel with Buttons
- group name
- Custom Silicone Rubber Control Panel
- Min Order
- 2000 piece
- brand name
- FromRubber Silicone & Plastic OEM Manufacturer
- Nearest port for product export
- FOB shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, D/P D/A, Credit Card, PayPal, Westem Union, Cash
- update time
- Thu, 24 Jul 2025 07:57:49 GMT
Paramtents
Design Follow 3D Drawing Or Physical Object
Process Molding
Feature Button Matrix,Conductive,IP68 Rated
MOQ 2000pcs
Application industrial, medical & automotive applications
Packging & Delivery
-
Min Order2000 piece
Briefing
Detailed

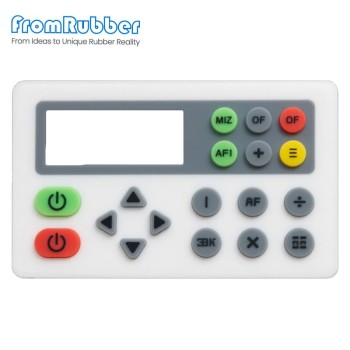

Waterproof Silicone Membrane Keypads
Professional-grade rubber panel keypads with IP67 waterproof rating for harsh environments
Product Highlights
IP67 Waterproof Rating
Fully protected against dust ingress and temporary immersion in water (1m for 30 minutes).
Chemical Resistance
Withstands oils, solvents, and most cleaning agents without degradation.
Tactile Feedback
Precision-engineered domes provide consistent 200-400g actuation force.
UV Stable
Special formulation resists yellowing and hardening from sunlight exposure.
Technical Specifications
Physical Properties
- Material: Medical-grade silicone
- Thickness: 0.8-2.5mm
- Hardness: 50-70 Shore A
- Operating Temp: -40°C to 200°C
Electrical Properties
- Contact Resistance: <50Ω
- Insulation Resistance: >100MΩ
- Dielectric Strength: 500V AC
- Life Cycles: >1 million
Environmental Ratings
- IP67 Waterproof
- UV Resistance: 500+ hours
- Chemical Resistance: MIL-STD-810
- Flame Rating: UL94-HB
Ideal Applications
Medical Equipment
Sterilizable interfaces for surgical tools and diagnostic devices
Industrial Controls
Washdown panels for food processing and manufacturing
Automotive
In-vehicle controls resistant to weather and chemicals
Outdoor Equipment
Weatherproof controls for agricultural and marine use
Customization Options
Button Configuration
Custom shapes, sizes, and layouts including convex, concave, or flat buttons
Color & Graphics
Pantone-matched colors with screen printed or laser etched legends
Special Features
Backlighting, embossing, braille, or antimicrobial treatments available
Ready to Specify Your Waterproof Keypad?
Our engineering team will work with you to develop the perfect membrane keypad solution for your application.
Frequently Asked Questions
What makes these keypads waterproof? +
Our keypads achieve IP67 rating through a combination of sealed silicone construction, specialized adhesive backing, and precision-molded features that prevent water ingress while maintaining tactile responsiveness.
Can I get samples before placing an order? +
Yes, we provide functional samples of standard designs within 5 business days. Custom samples require tooling and typically deliver in 2-3 weeks.
What's the minimum order quantity? +
MOQ is 2000 pieces for standard designs. Custom designs may have higher minimums depending on tooling requirements.
